Roller Linear Guide LGD
LGD Standard type (dust-proof)4 roller bearings

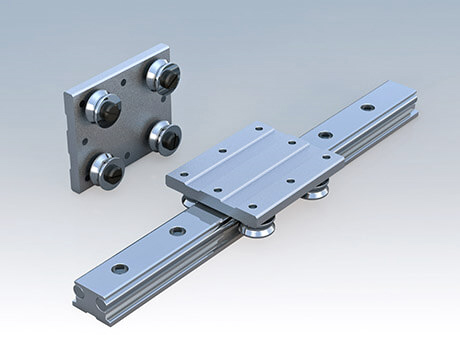

LGD12E Economy type4 roller bearings
LGD12XL Heavy load type (dust-proof)8 roller bearings
Linear guide is consisted of Block, Rail, Rolling elements, Retainer, Seal, Recirculator etc. Using rolling elements, such as balls or rollers between the rail and block, the linear guide can achieve high precision linear motion.
Roller Linear Guide Type
LGD Standard type, LGD12E Economy type.
LGD12XL Heavy load type, Contains 8 roller bearings.
| Product No | Dynamic Load Rating C (kgf) | Static Load Rating C0 (kgf) | Allowable Static Torque | Weight | |||
|---|---|---|---|---|---|---|---|
| To kgf-m | Tx kgf-m | Ty kgf-m | Block kg | Track Rail kg/m | |||
| LGD | 140 | 230 | 4.3 | 3.2 | 3.8 | 0.36 | 3.2 |
| LGD-XL | 290 | 460 | 8.7 | 11.2 | 13.6 | 0.86 | 3.2 |
Specifications
Size : 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Production according to customer's request, block and rail assembled for the shipping.
Characteristic: Heavy load, low noise, high speed, high accuracy, Normally used for machining center, grinding machinery, heavy machinery etc.
